Foodstuff conveyor belt

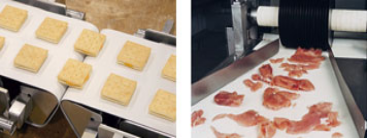

Food Industry:

Light Duty Conveyor Belts for food industry are excellent resistant to oil and fat, non-toxic, healthy and easy to clean. The type of belts conforms with FDA, USDA and EU regulations, can be used in many applications in the following industries: bakery, confectionary,meat and poultry, fish, fruit and vegetables, dairy, agriculture etc.

The normal types are as follows:

C25-BL20-S0105/S00O
C25-BL20-S0105/S00O
Color	Total thickness (mm)	Weight (kg/m2)	Top cover thickness (mm)	Top Coating Shore A	Working Temp. (°C)	Pull for 1% Elongation (N/mm)	Min. Pulley Dia.(mm)	Max. Width(mm)	Lateral Stability
BL	2	2.3	0.5	65	-0.111111111	10	25	3000	*

C22-T18-S0000/S00O
C22-T18-S0000/S00O
Color	Total thickness (mm)	Weight (kg/m2)	Top cover thickness (mm)	Top Coating Shore A	Working Temp. (°C)	Pull for 1% Elongation (N/mm)	Min. Pulley Dia.(mm)	Max. Width(mm)	Lateral Stability
T	1.8	1.7	-	-	-0.111111111	10	40	3000	*

C25-W20-S0205/S00O
C25-W20-S0205/S00O
Color	Total thickness (mm)	Weight (kg/m2)	Top cover thickness (mm)	Top Coating Shore A	Working Temp. (°C)	Pull for 1% Elongation (N/mm)	Min. Pulley Dia.(mm)	Max. Width(mm)	Lateral Stability
W	2	2.3	0.5	65	-0.111111111	10	25	3000	*

C25-W30-S0110/S00O
C25-W30-S0110/S00O
Color	Total thickness (mm)	Weight (kg/m2)	Top cover thickness (mm)	Top Coating Shore A	Working Temp. (°C)	Pull for 1% Elongation (N/mm)	Min. Pulley Dia.(mm)	Max. Width(mm)	Lateral Stability
W	3	3.3	1	65	-0.111111111	10	60	3000	*

C22-W31-S0106/S05O
C22-W31-S0106/S05O
Color	Total thickness (mm)	Weight (kg/m2)	Top cover thickness (mm)	Top Coating Shore A	Working Temp. (°C)	Pull for 1% Elongation (N/mm)	Min. Pulley Dia.(mm)	Max. Width(mm)	Lateral Stability
W	3.1	3.1	0.6	65	-0.111111111	10	50	3000	*

U2-W14-S0103/S00
U2-W14-S0103/S00
Color	Total thickness (mm)	Weight (kg/m2)	Top cover thickness (mm)	Top Coating Shore A	Working Temp. (°C)	Pull for 1% Elongation (N/mm)	Min. Pulley Dia.(mm)	Max. Width(mm)	Lateral Stability
W	1.4	1.3	0.3	86	-0.25	14	6	2700	*
