Sidewall conveyor belt

Description:

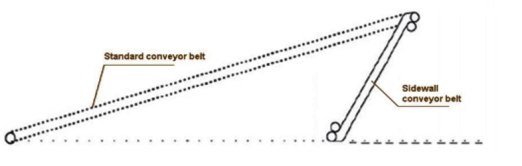

Sidewall conveyor belt can be used for horizontal, sloping or vertical conveyance, it is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation, wide range material can be handled, less space and requirement, no transfer point, low maintenance and big capacity.

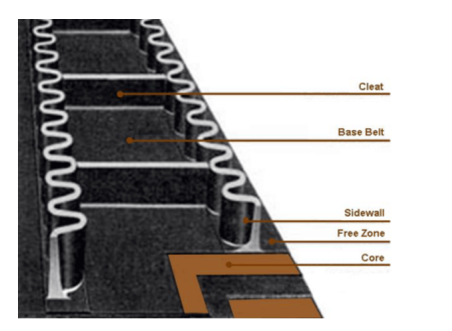

It is based on the following main components:

1.Cross-Stabilized Base Belts

2.Sidewalls

3.Cleats

Cleats Type	T'		T									C					S
Structure
Height	35	40	20	35	55	75	90	110	140	180	230	35	55	75	90	110	75	90	110	140	180	230
Belt Width	110	110	40	55	80	80	110	110	160	160	175	55	75	80	110	110	80	110	110	160	160	175
CLeats Type	MBT							XS-T				MBS							XS-S
Structure
Height	110	140	180	230	250	280	360	230	250	280	360	110	140	180	230	250	280	360	230	250	280	360
Belt Width	160	160	160	160	160	160	160	210	220	230	230	160	160	160	160	160	160	160	225	225	225	230
CLeats Type	XE(Cross Rigid)							XE+2(2ply XE)							XE-MB(Metal Breaker)+2
Structure
